Diesel Tiller

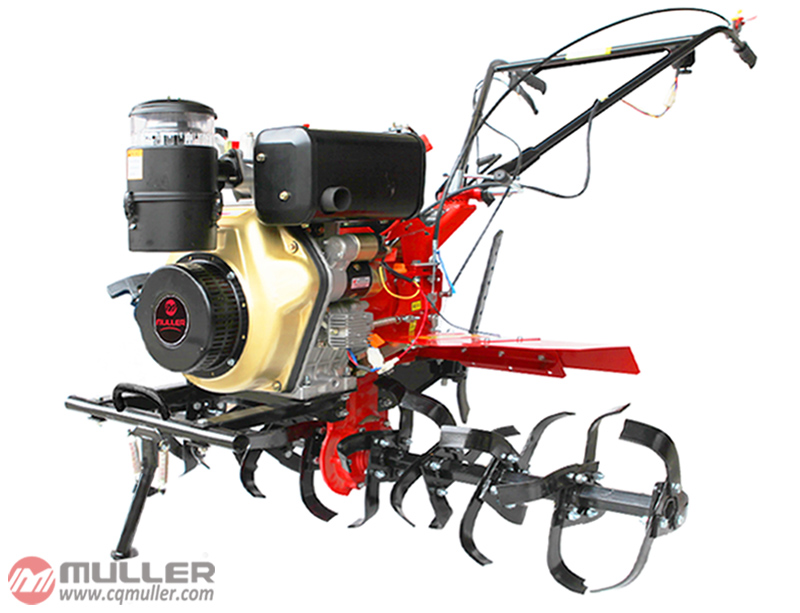

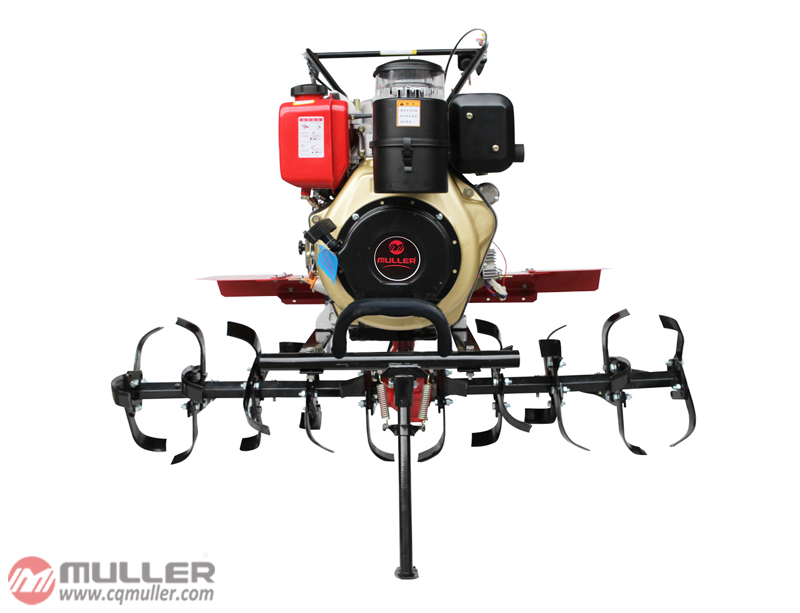

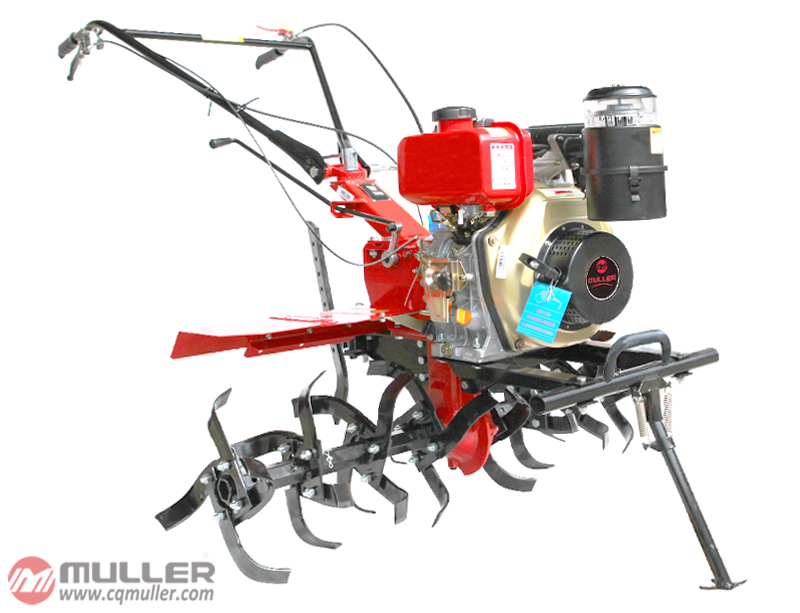

Diesel Tiller ML135DB ◆The operation is free from flat land, hill and hillside restrictions. It can move smoothly and operate in small pieces of land in mountains and hills. And it can operate freely due to its small size in small farming area, such as vegetable greenhouses, orchards, vegetable gardens to achieve a mechanized operation. ◆Tools are complete. In addition to standard tools, various tools can be selected to ridge, ditch, earth up, weeding etc. according to local farming needs. And it can meet the operation needs in both flooded field and drought field. ◆The tillage depth is controlled by easy-adjusted damping arm. ◆Easy to use, operate and learn.

Specification Spare Parts

Model	ML105D	ML135DA	ML135DB	ML105DE	ML135DAE	ML135DBE
Engine model	173F	178F	186FA	173FE	178FE	186FAE
Fuel capacity,l	2.5	3.5	5.5	2.5	3.5	5.5
Engine oil capacity,l	0.75	1.1	1.65	0.75	1.1	1.65
Gearbox type	Small gearbox	Big gearbox		Small gearbox	Big gearbox
Transmission type	Gear transmission
Gear shifting	2 speed (2 forward,1 reverse gear)
Tilling width,mm	800-1300
Tilling depth,mm	150-350
Blade type	dry land blade or deep blade 4X5/4x4 (40pieces or 32pieces)
Wheel type	19x7-8/400-8/400-10/500-12/600-12/700-10
Accessory type	open ditcher/potato harvest/single plough/mower/seeder/snowsweeper/front bumper
Starting mode	recoil start			electric start (with battery 21A,27A,36A)
Weight,kg	125kg	150kg	160kg	155kg	170kg	180kg

Model	ML135DA
Engine model	178F
Fuel capacity,l	3.5
Engine oil capacity,l	1.1
Transmission type	gear
Gearbox type	big gearbox
Gear shifting	2forward,1reverse gear
Tilling width,mm	800-1200
Tilling depth,mm	150-300
Blade type	40pieces or 32pieces
Wheel type	400-8/400-10/500-12
Accessory type	open ditcher/plough
Starting mode	recoil start
Weight,kg	150kg
