Diesel Tiller

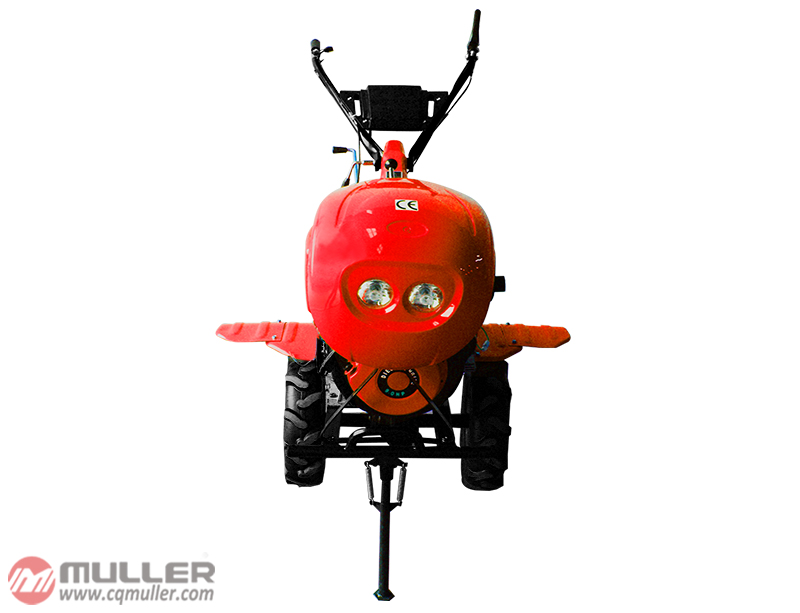

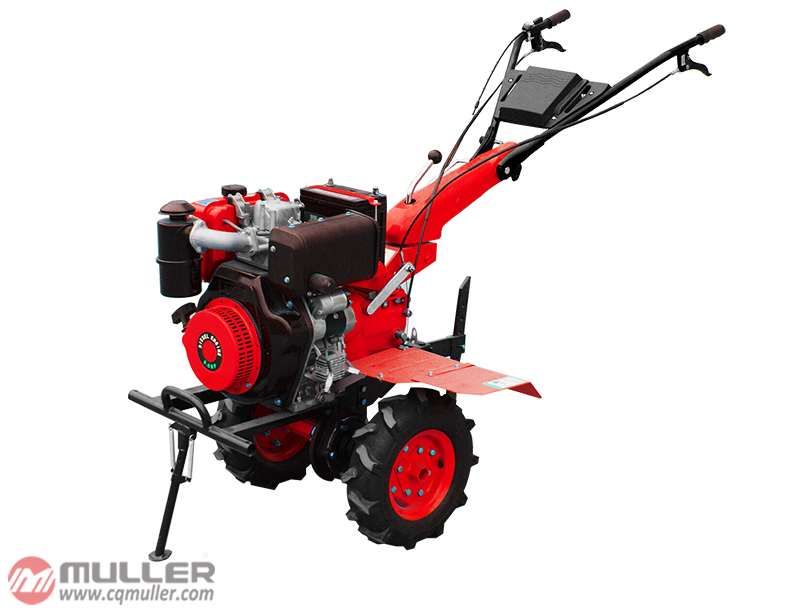

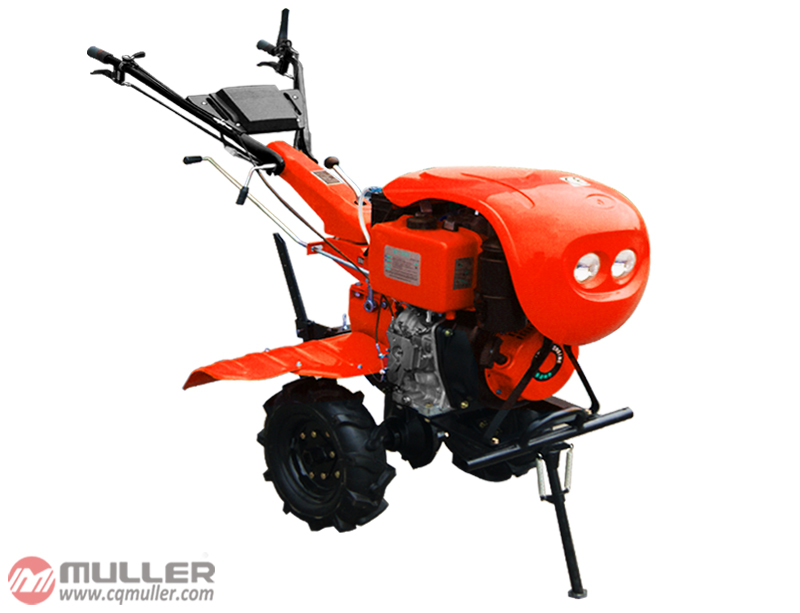

Diesel Tiller ML135DBE with headlight ◆The operation is free from flat land, hill and hillside restrictions. It can move smoothly and operate in small pieces of land in mountains and hills. And it can operate freely due to its small size in small farming area, such as vegetable greenhouses, orchards, vegetable gardens to achieve a mechanized operation. ◆Tools are complete. In addition to standard tools, various tools can be selected to ridge, ditch, earth up, weeding etc. according to local farming needs. And it can meet the operation needs in both flooded field and drought field. ◆The tillage depth is controlled by easy-adjusted damping arm. ◆Easy to use, operate and learn.

Model ML105D ML135DA ML135DB ML105DE ML135DAE ML135DBE
Engine model 173F 178F 186FA 173FE 178FE 186FAE
Fuel capacity,l 2.5 3.5 5.5 2.5 3.5 5.5
Engine oil capacity,l 0.75 1.1 1.65 0.75 1.1 1.65
Gearbox type Small gearbox Big gearbox Small gearbox Big gearbox
Transmission type Gear transmission
Gear shifting 2 speed (2 forward,1 reverse gear)
Tilling width,mm 800-1300
Tilling depth,mm 150-350
Blade type dry land blade or deep blade 4X5/4x4 (40pieces or 32pieces)
Wheel type 19x7-8/400-8/400-10/500-12/600-12/700-10
Accessory type open ditcher/potato harvest/single plough/mower/seeder/snowsweeper/front bumper
Starting mode recoil start electric start (with battery 21A,27A,36A)
Weight,kg 125kg 150kg 160kg 155kg 170kg 180kg
Model ML135DBE
Engine model 186FAE
Fuel capacity,l 5.5
Engine oil capacity,l 1.65
Transmission type gear
Gearbox type big gearbox
Gear shifting 2forward,1reverse gear
Tilling width,mm 800-1200
Tilling depth,mm 150-300
Blade type 40pieces or 32pieces
Wheel type 400-8/400-10/500-12
Accessory type open ditcher/plough
Starting mode electric start
Weight,kg 180kg
