Diesel Tiller

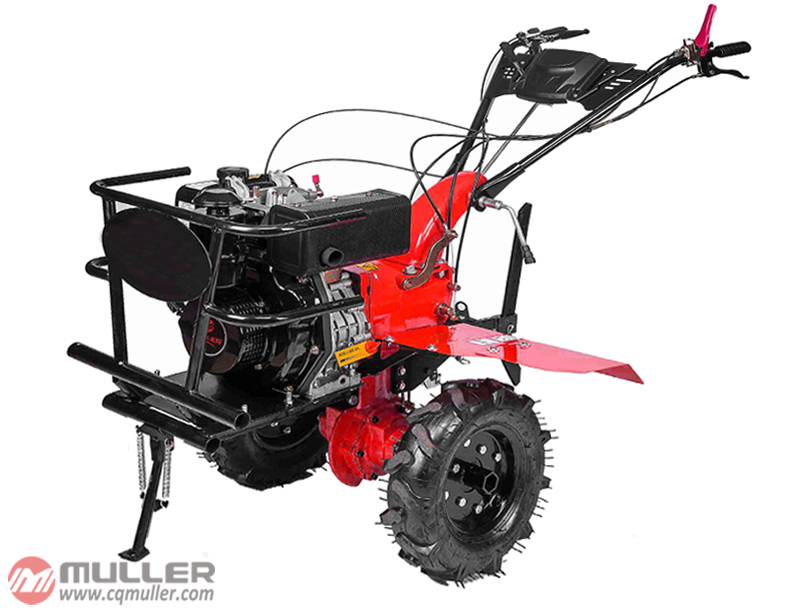

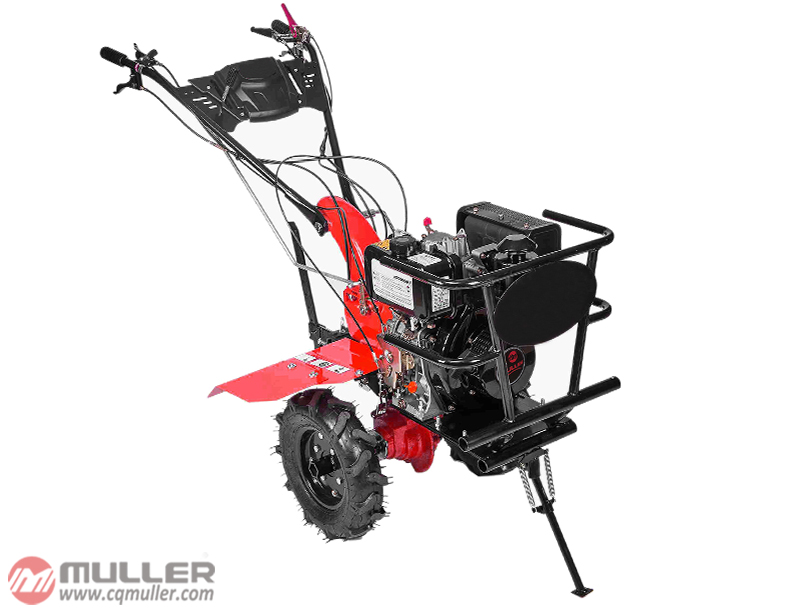

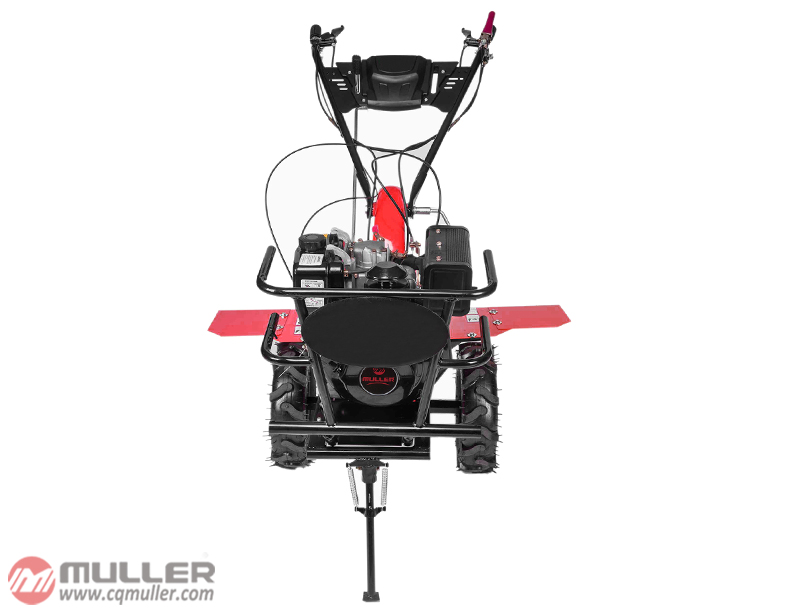

Diesel Tiller ML135DAD with differential ◆The operation is free from flat land, hill and hillside restrictions. It can move smoothly and operate in small pieces of land in mountains and hills. And it can operate freely due to its small size in small farming area, such as vegetable greenhouses, orchards, vegetable gardens to achieve a mechanized operation. ◆Tools are complete. In addition to standard tools, various tools can be selected to ridge, ditch, earth up, weeding etc. according to local farming needs. And it can meet the operation needs in both flooded field and drought field. ◆The tillage depth is controlled by easy-adjusted damping arm. ◆Easy to use, operate and learn.

Specification Spare Parts

Model	ML105DPRO	ML135DAPRO	ML135DBPRO	ML105DD	ML135DAD	ML135DBD
Engine model	173F	178F	186FA	173F	178F	186FA
Fuel capacity,l	2.5	3.5	5.5	2.5	3.5	5.5
Engine oil capacity,l	0.75	1.1	1.65	0.75	1.1	1.65
Gearbox type	Small gearbox	Big gearbox		Small gearbox	Big gearbox
Transmission type	Gear transmission
Gear shifting	3 speed (3 forward,1 reverse gear)			2 speed or 3 speed/steering differential
Tilling width,mm	800-1300
Tilling depth,mm	150-350
Blade type	dry land blade or deep blade 4X5/4x4 (40pieces or 32pieces)
Wheel type	19x7-8/400-8/400-10/500-12/600-12/700-10
Accessory type	open ditcher/potato harvest/single plough/mower/seeder/snowsweeper/front bumper
Starting mode	recoil start/electric start (with battery 21A,27A,36A)
Weight,kg	125kg	150kg	160kg	160kg	175kg	185kg

Model	ML135DAD
Engine model	178F
Fuel capacity,l	3.5
Engine oil capacity,l	1.1
Transmission type	gear
Gearbox type	big gearbox
Gear shifting	steering differential
Tilling width,mm	800-1200
Tilling depth,mm	150-300
Blade type	40pieces or 32pieces
Wheel type	400-8/400-10/500-12
Accessory type	open ditcher/plough
Starting mode	recoil start
Weight,kg	150kg
