Gasoline Tiller

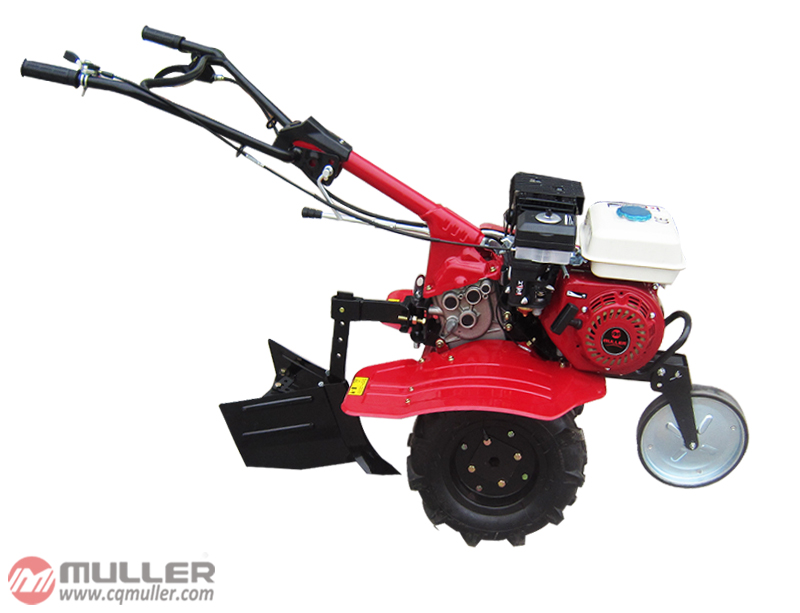

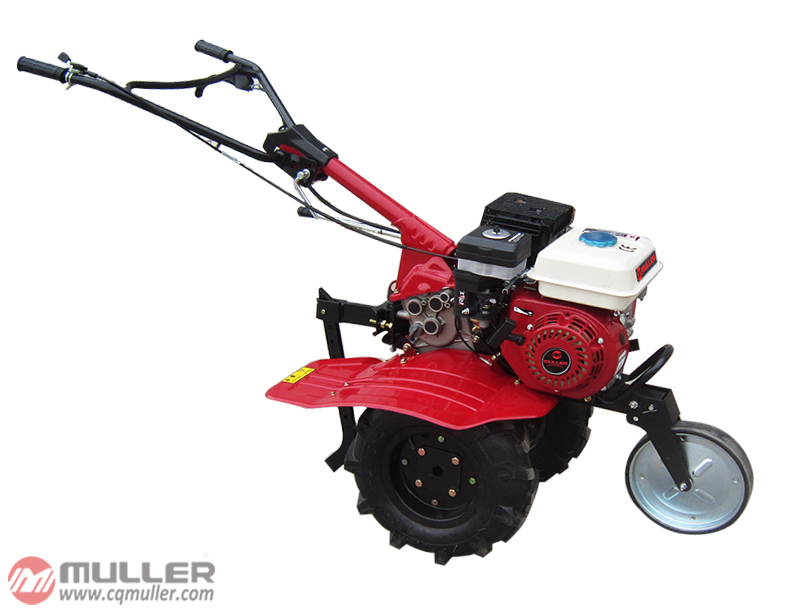

Gasoline Tiller ML75A ◆The operation is free from flat land, hill and hillside restrictions. It can move smoothly and operate in small pieces of land in mountains and hills. And it can operate freely due to its small size in small farming area, such as vegetable greenhouses, orchards, vegetable gardens to achieve a mechanized operation. ◆Tools are complete. In addition to standard tools, various tools can be selected to ridge, ditch, earth up, weeding etc. according to local farming needs. And it can meet the operation needs in both flooded field and drought field. ◆The tillage depth is controlled by easy-adjusted damping arm. ◆Easy to use, operate and learn.

Specification Spare Parts

Model	ML75A	ML80	ML105	ML135GA	ML135GB	ML135GC	ML135GD	ML135GE
Engine power,hp	7HP	7HP	7HP	7HP	9HP	13HP	15HP	17HP
Fuel capacity,l	3.6	3.6	3.6	3.6	6	6	6	6
Engine oil capacity,l	0.6	0.6	0.6	0.6	1.1	1.1	1.1	1.1
Transmission type	Belt transmission		Gear transmission
Gearbox type	Aluminum	Cast iron	Small gearbox	Big gearbox
Gear shifting	2 speed (2 forward,1 reverse gear}
Tilling width,mm	800-1200				800-1300
Tilling depth,mm	150-300				150-350
Blade type	dry land blade 3X4/4X3/4x4 (24pieces or 32pieces)				dry land blade or deep blade 4X5/4x4 (40pieces or 32pieces)
Wheel type	3.5-6/400-8/400-10/19x7-8/500-12				19x7-8/400-8/400-10/500-12/600-12/700-10
Accessory type	open ditcher/potato harvest/single plough/mower/seeder/snowsweeper/front bumper
Starting mode	recoil start/electric start (with battery 7A,9A,18A,21A)
Weight,kg	88kg	92kg	98kg	125kg	140kg	144kg	144kg	150kg

Model	ML75A
Engine power,hp	7HP
Fuel capacity,l	3.6
Engine oil capacity,l	0.6
Transmission type	belt
Gearbox type	aluminum
Gear shifting	2forward,1reverse gear
Tilling width,mm	800-1200
Tilling depth,mm	150-300
Blade type	24pieces or 32pieces
Wheel type	400-8/400-10/19x7-8
Accessory type	open ditcher/plough
Starting mode	recoil start/electric start
Weight,kg	88kg
