ML152F | ML168F-2 | ML170F | ML177F | ML188F | ML190F | ML192F | ML192F-2 |
| Engine type | Single cylinder,4stroke,forced cooling | |||||||
| Fuel tank capacity,l | 1.4 | 3.6 | 6 | |||||
| Engine oil capacity,l | 0.45 | 0.6 | 1.1 | |||||
| Displacement,cm³ | 97 | 196 | 208 | 270 | 389 | 420 | 445 | 460 |
| Power,hp | 3 | 6.5 | 7 | 9 | 13 | 15 | 17 | 18.5 |
| Weight,kg | 11 | 15 | 15 | 27 | 29 | 29 | 30 | 30 |
| Starting mode | recoil start/electric start | |||||||

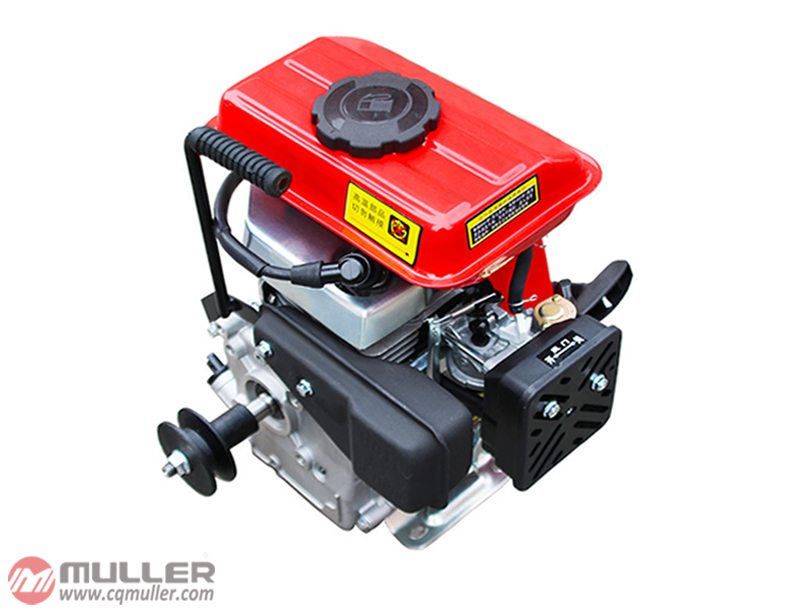

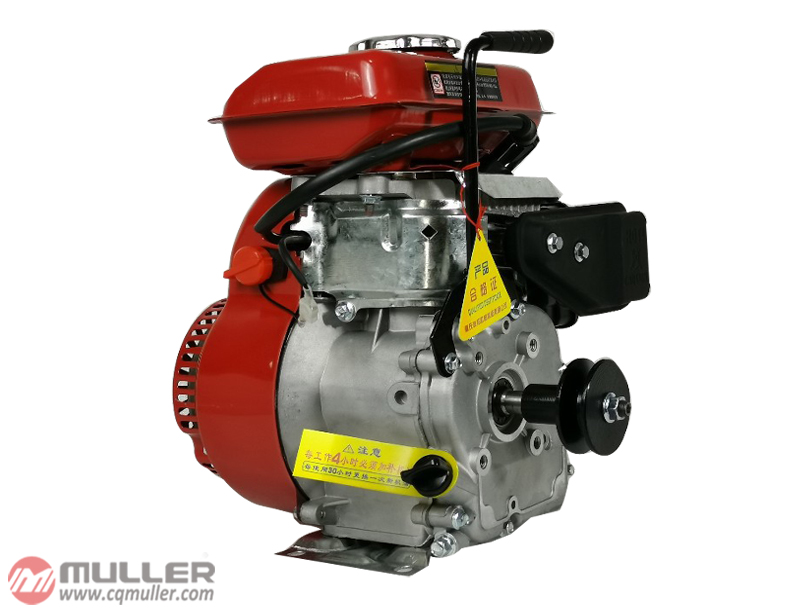

| odel | ML152F |
| Engine type | OHV,single cylinder,4stroke |
| Displacement | 97cc |
| Bore×Stroke | 52mm×46mm |
| Engine power | 3HP |
| Idle speed | 1400±150r/min |
| Compression ratio | 5.6∶1 |
| PTO shaft rotation | Anti-clockwise(from PTO) |
| Noise | ≤70B(A) |
| Ignition system | Transistorized magneto |
| Starting system | Recoil start |
| Carburetor | Butterfly |
| Lubrication system | Splash |

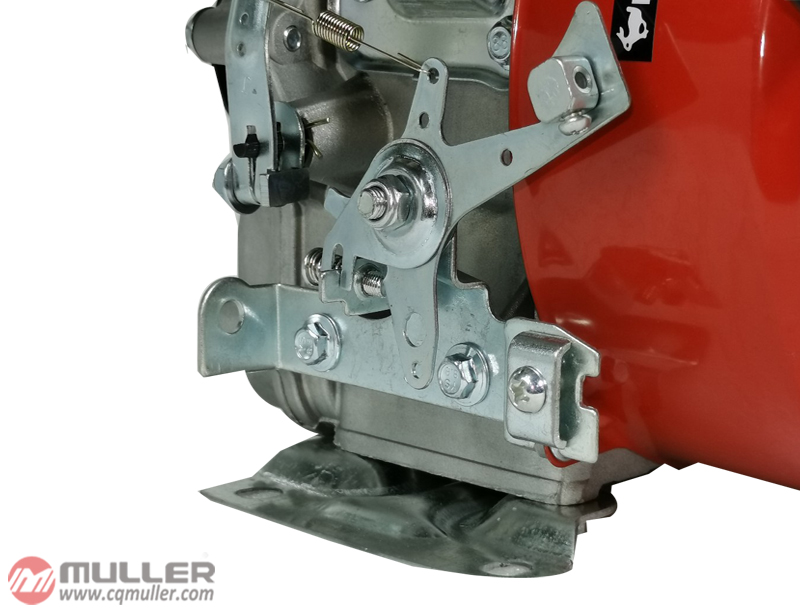

| Governor system | Centrifugal mass type |
| Air cleaner | Semi-dry,element,Oil bath |
| Oil capacity | 0.45L |
| Fuel tank capcity | 1.4L |
| Net weight | 10kg/11kg |
| Dimension | 340×310×360 |
|
