ML168F | ML168F-2 | ML170F | ML177F | ML188F | ML190F | ML192F | ML192F-2 |
| Engine type | Single cylinder,4stroke,forced cooling | |||||||
| Fuel tank capacity,l | 3.6 | 6 | ||||||
| Engine oil capacity,l | 0.6 | 1.1 | ||||||
| Displacement,cm3 | 163 | 196 | 208 | 270 | 389 | 420 | 445 | 460 |
| Power,hp | 5.5 | 6.5 | 7 | 9 | 13 | 15 | 17 | 18.5 |
| Weight,kg | 15 | 15 | 15 | 27 | 29 | 29 | 30 | 30 |
| Starting mode | Recoil start | |||||||

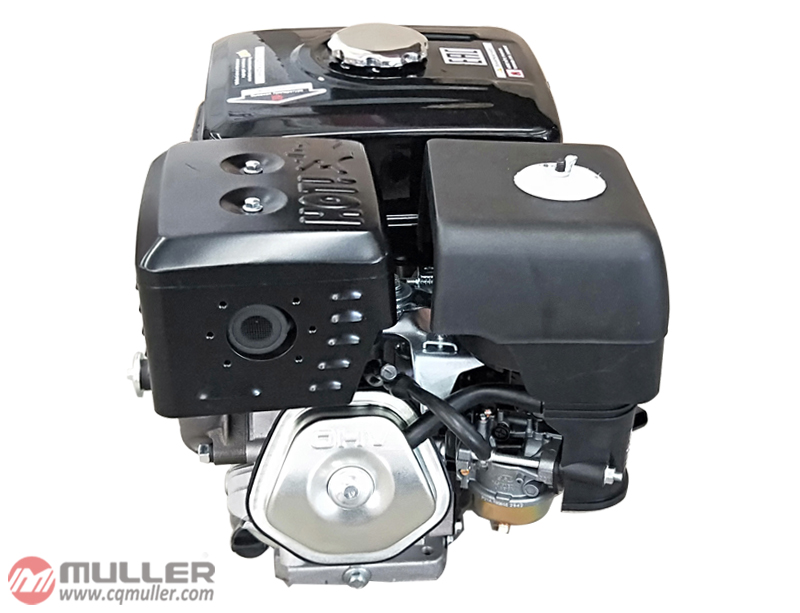

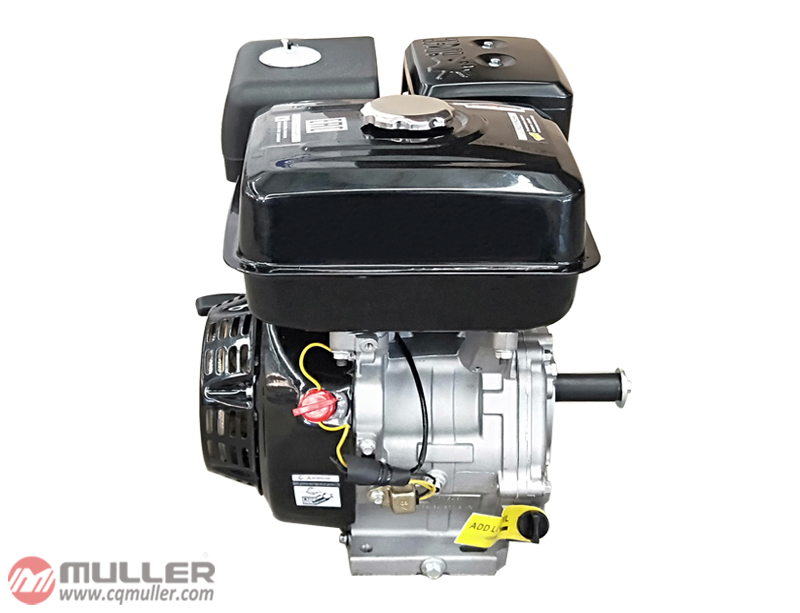

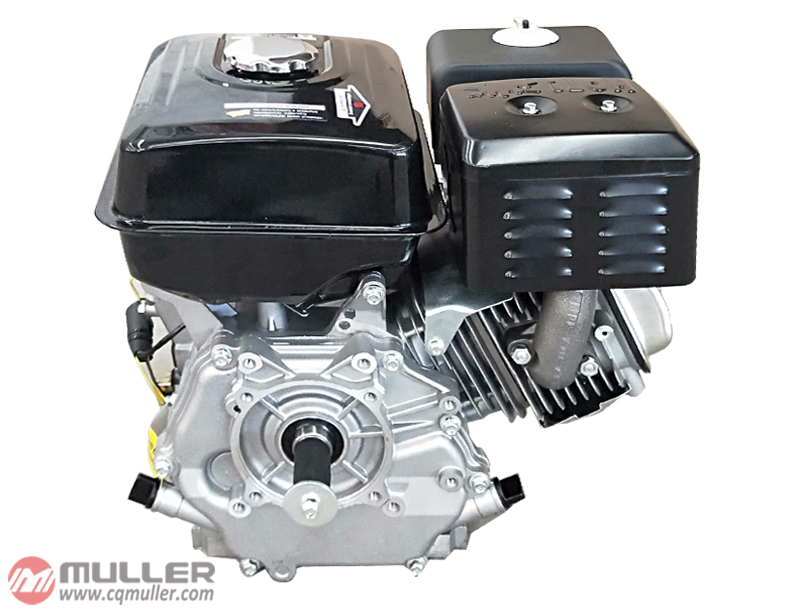

| Model | ML177F |
| Engine type | OHV,single cylinder,4stroke |
| Displacement | 270cc |
| Bore×Stroke | 77mm×58mm |
| Engine power | 9HP |
| Idle speed | 1400±150r/min |
| Compression ratio | 8.2∶1 |
| PTO shaft rotation | Anti-clockwise(from PTO) |
| Noise | ≤70B(A) |
| Ignition system | Transistorized magneto |

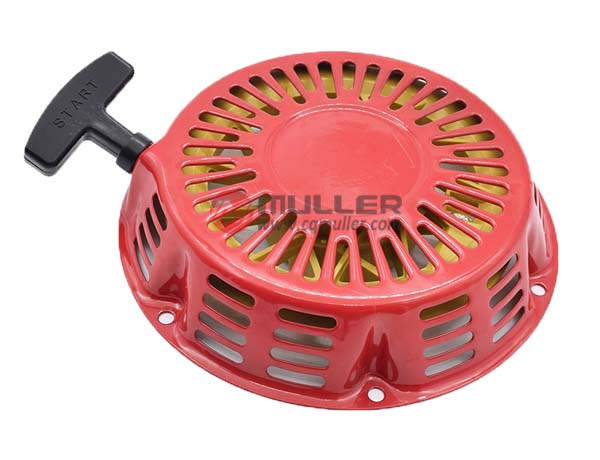

| Starting system | Recoil start/Electic-start |

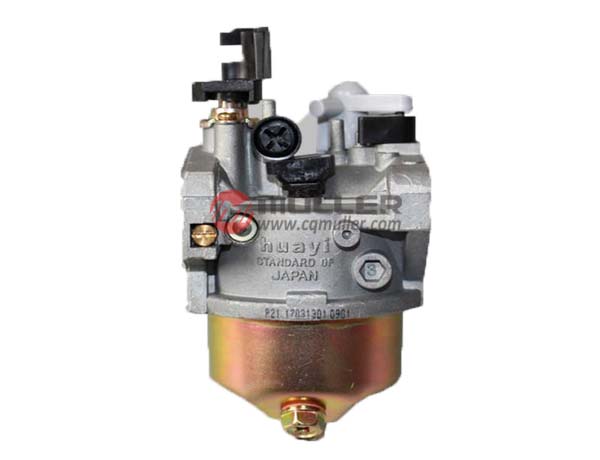

| Carburetor | Butterfly |
| Lubrication system | Splash |
| Governor system | Centrifugal mass type |
| Air cleaner | Semi-dry,element,Oil bath |
| Oil capacity | 1.1L |
| Fuel tank capcity | 6L |
| Net weight | 25kg/26kg |
| Dimension | 490×435×520 |
|
