| ML168F-2D | ML170FD | ML177FD | ML188FD | ML190FD | ML192FD | ML192F-2D | ||
| Engine type | Single cylinder,4stroke,forced cooling | |||||||
| Fuel tank capacity,l | 3.6 | 6 | ||||||
| Engine oil capacity,l | 0.6 | 1.1 | ||||||
| Displacement,cm³ | 196 | 208 | 270 | 389 | 420 | 445 | 460 | |
| Power,hp | 6.5 | 7 | 9 | 13 | 15 | 17 | 18.5 | |
| Weight,kg | 15 | 15 | 27 | 29 | 29 | 30 | 30 | |
| Starting mode | Electric start | |||||||

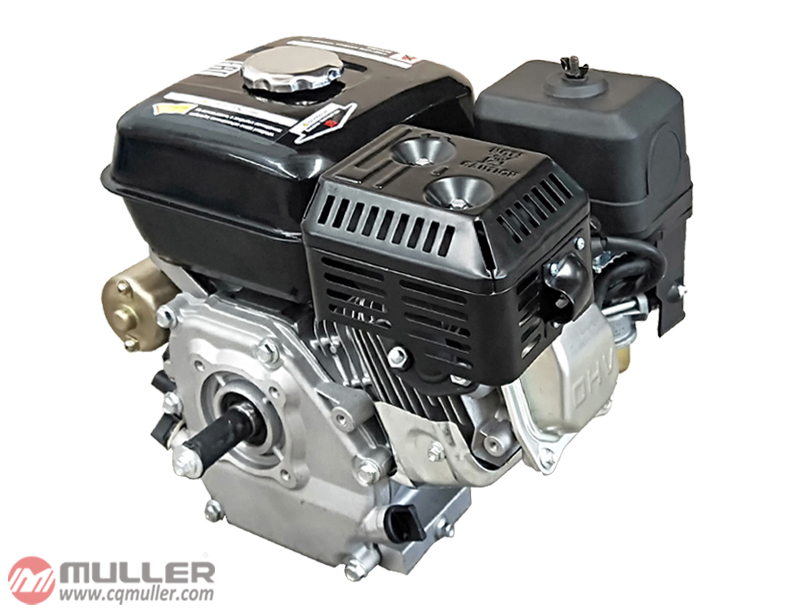

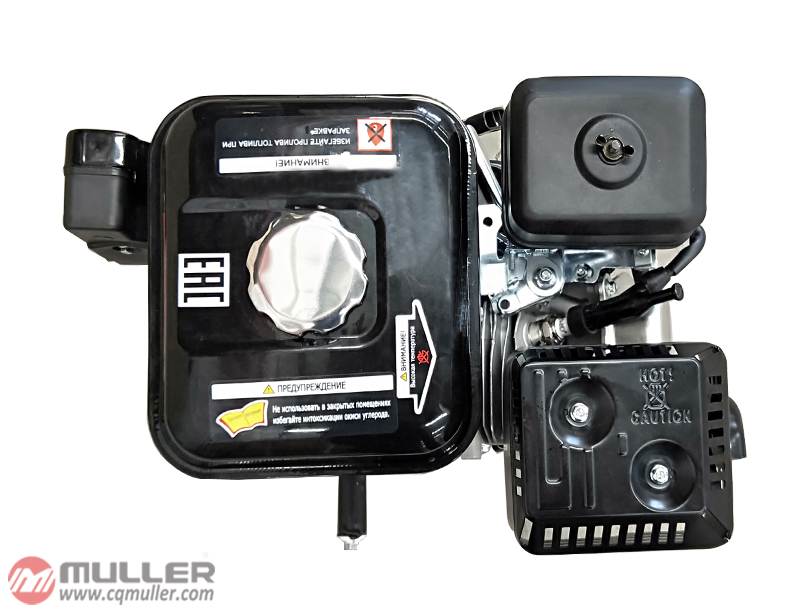

| Model | ML168F-2D |
| Engine type | OHV,single cylinder,4stroke |
| Displacement | 196cc |
| Bore×Stroke | 68mm×54mm |
| Engine power | 6.5HP |
| Idle speed | 1400±150r/min |
| Compression ratio | 8.5∶1 |
| PTO shaft rotation | Anti-clockwise(from PTO) |
| Noise | ≤70B(A) |
| Ignition system | Transistorized magneto |
| Starting system | Electic-start |
| Carburetor | Butterfly |
| Lubrication system | Splash |
| Governor system | Centrifugal mass type |
| Air cleaner | Semi-dry,element,Oil bath |
| Oil capacity | 0.6L |
| Fuel tank capcity | 3.6L |
| Net weight | 15kg/16kg |
| Dimension | 390×335×380 |
|
