Gasoline Engine

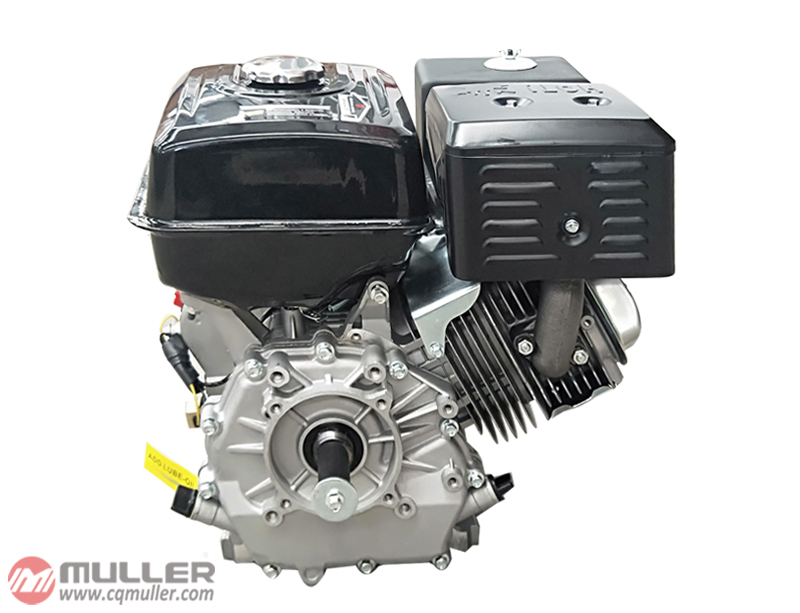

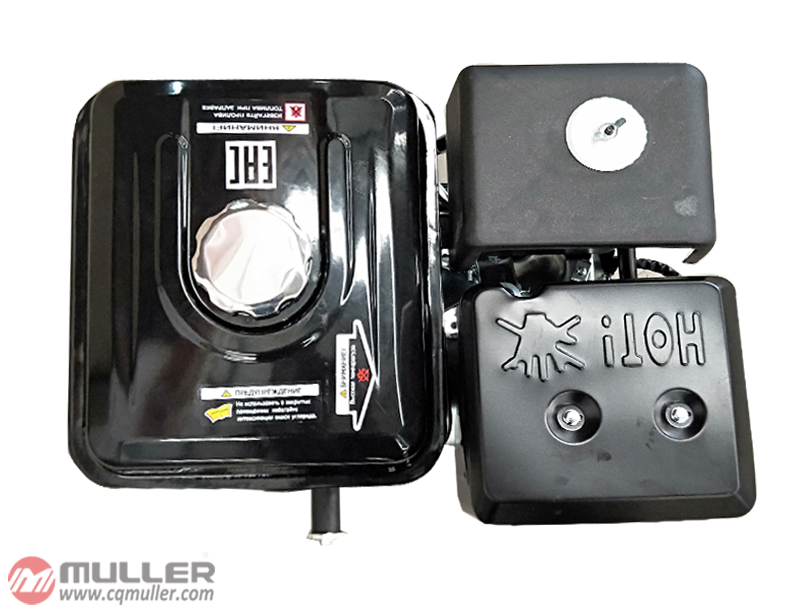

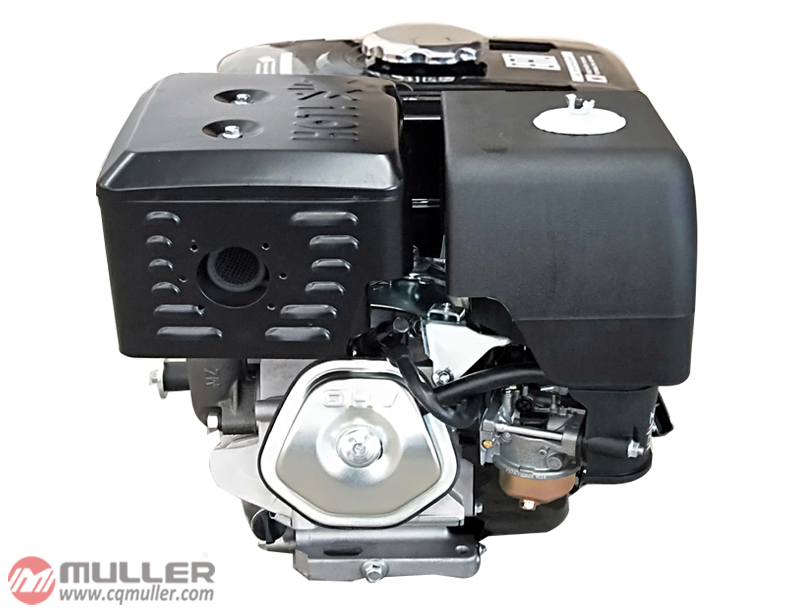

Gasoline Engine ML192F ◆OHV valve design,lower operation temperature,powerful drive and reliability. ◆Automatic alarm and stop at low oil level, which prevents the engine to work at low oil level and gives more protection to engine. ◆Metal cam and forged crankshaft makes engine more reliable and durable.


ML168F ML168F-2  ML170F  ML177F  ML188F  ML190F     ML192F     ML192F-2
Engine type Single cylinder,4stroke,forced cooling
Fuel tank capacity,l 3.6 6
Engine oil capacity,l 0.6 1.1
Displacement,cm3 163 196 208 270 389 420 445 460
Power,hp 5.5 6.5 7 9 13 15 17 18.5
Weight,kg 15 15 15 27 29 29 30 30
Starting mode Recoil start
Model ML192F
Engine type OHV,single cylinder,4stroke
Displacement 445cc
Bore×Stroke 92mm×66mm
Engine power 17HP
Idle speed 1400±150r/min
Compression ratio 8.31
PTO shaft rotation Anti-clockwise(from PTO)
Noise 70B(A)
Ignition system Transistorized magneto
Starting system Recoil start/Electic-start
Carburetor Butterfly
Lubrication system Splash
Governor system Centrifugal mass type
Air cleaner Semi-dry,element,Oil bath
Oil capacity 1.1L
Fuel tank capcity 6L
Net weight 33kg/34kg
Dimension 490×435×520
